9187 Rear Hub Nut Tool - LDV/MAXUS V90 & Deliver 9

3/4" Drive

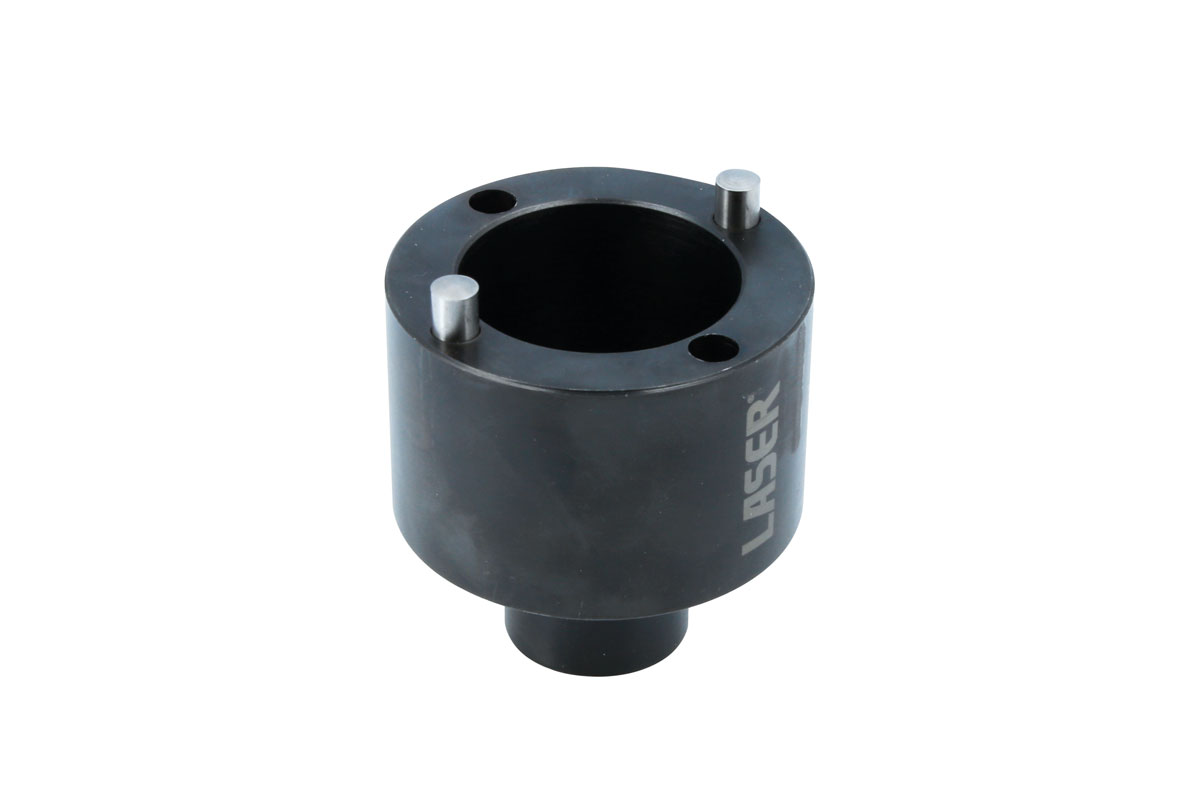

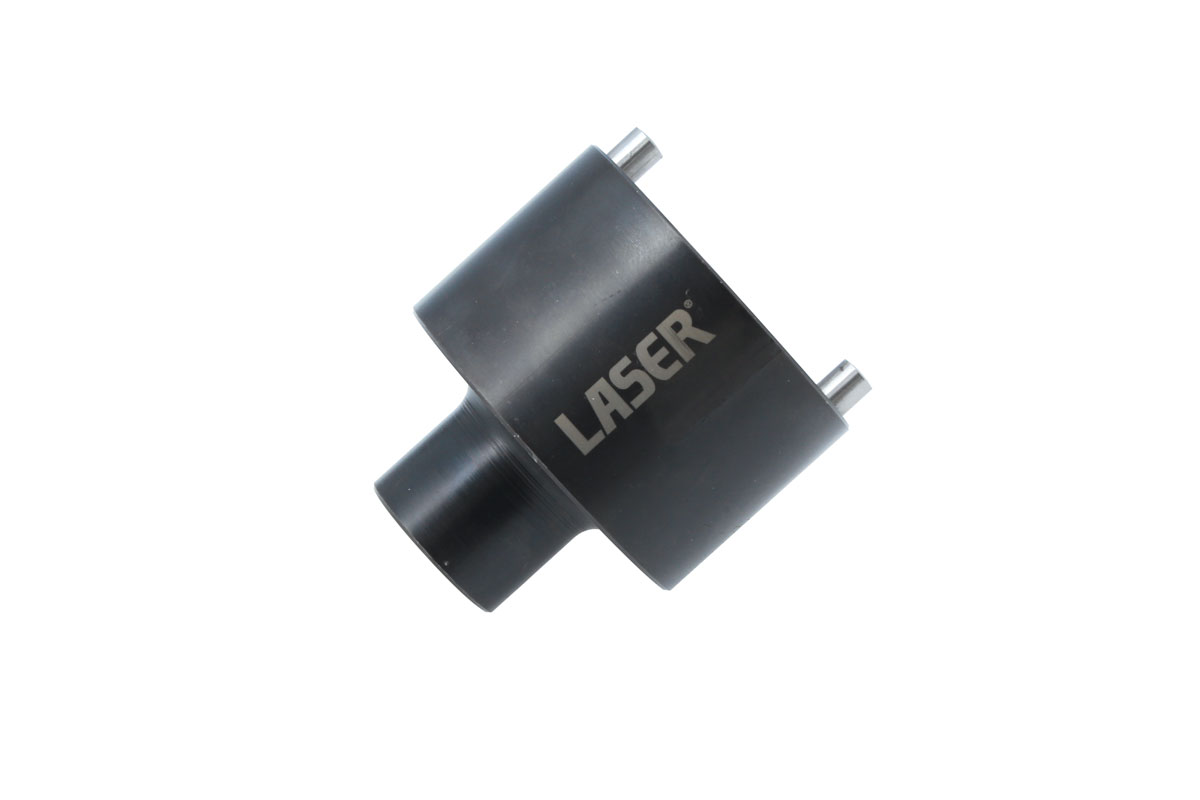

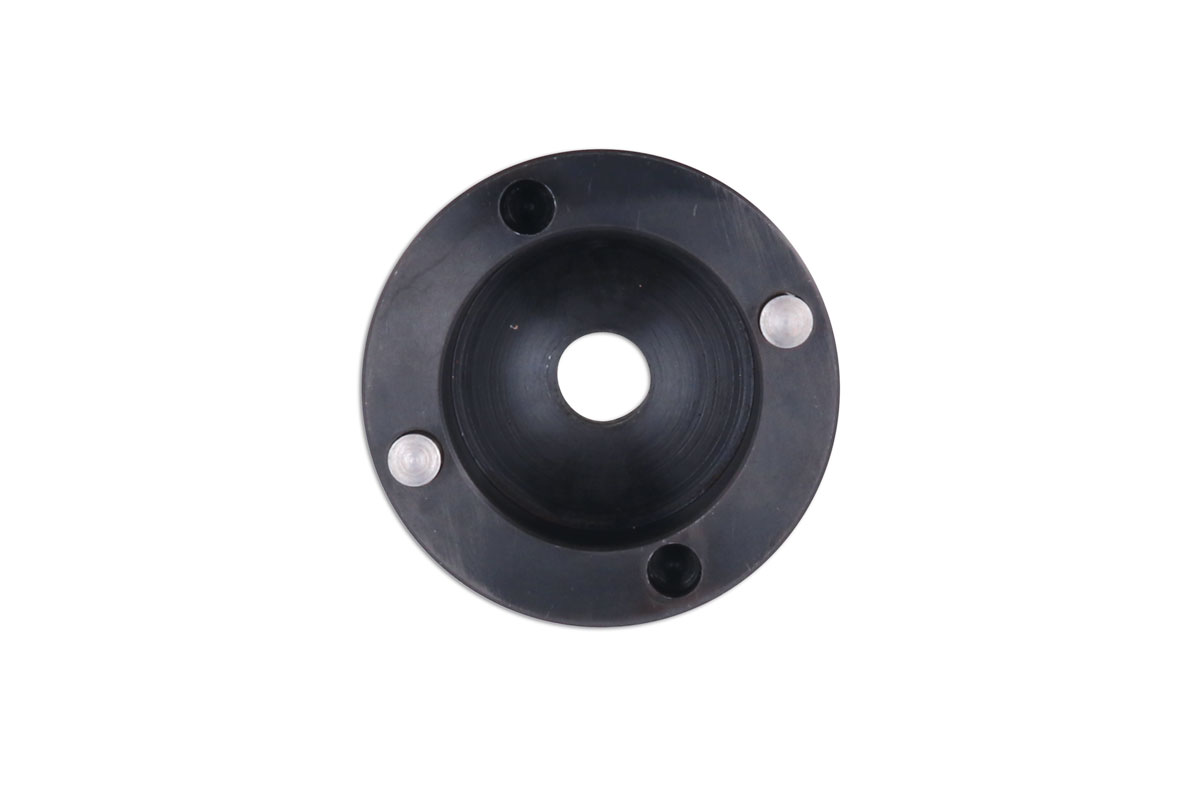

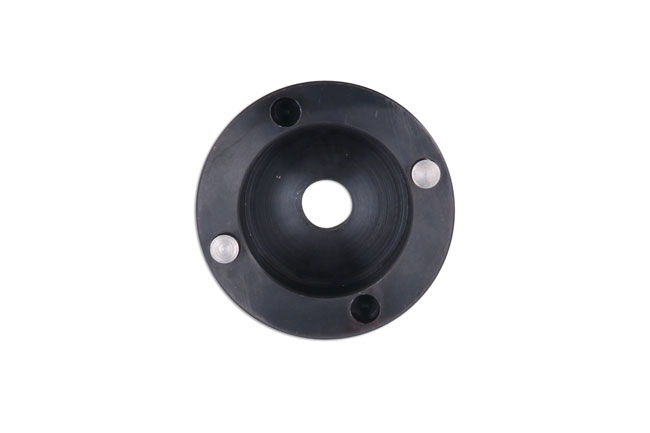

The rear hub nut found on the post-2019 MAXUS V90 & Deliver 9 light commercial vehicles utilise a 2-pin hub nut that is tightened to over 500Nm. It is necessary to remove this nut to service the rear brake disc, handbrake shoes and half shafts. The Laser 9187 has been designed to allow the user to remove the fixing without damage.

  • Applications include: MAXUS V90 & Deliver 9 (from 2019).
  • Hub nut/lock nut, 2-pin socket.
  • 3/4"D. Outside diameter: 88mm.
  • Manufactured from carbon steel for strength. Due to the high tightening torque required Laser Tools recommends the use of a torque multiplier such as Laser Part No. 7318 or similar.
  • NOTE: Due to the nature of the 2-pin fixing this socket is not to be used with impact tools.
List Price: £124.46 ex VAT £149.35 inc VAT

Die hintere Nabenmutter der leichten Nutzfahrzeuge MAXUS V90 und Delivery 9 nach 2019 ist mit einer 2-Zapfen-Nabenmutter ausgestattet, die mit über 500 Nm angezogen wird. Diese Mutter muss entfernt werden, um die hintere Bremsscheibe, die Handbremsbacken und die Halbwellen zu warten. Das Werkzeug Laser 9187 wurde so konzipiert, dass der Benutzer diese Mutter beschädigungsfrei entfernen kann.

  • Einsatzmöglichkeiten u. a.: MAXUS V90 und Delivery 9 (ab 2019).
  • Nabenmutter/Sicherungsmutter, 2-Zapfen-Steckschlüsseleinsatz.
  • 3/4"-Antrieb. Äußerer Durchmesser: 88 mm.
  • Gefertigt aus Kohlenstoffstahl für hohe Festigkeit. Aufgrund des hohen erforderlichen Anzugsdrehmoments empfiehlt Laser Tools die Verwendung eines Drehmomentvervielfältigers wie Laser Teile-Nr. 7183 oder ähnlich.
  • HINWEIS: Aufgrund der Struktur der 2-Zapfen-Befestigung darf dieser Steckschlüsseleinsatz nicht mit Schlagschraubern verwendet werden.
List Price: £124.46 ex VAT £149.35 inc VAT

L'écrou de moyeu arrière présent sur les véhicules utilitaires légers MAXUS V90 et Delivery 9 postérieurs à 2019 utilise un écrou de moyeu à 2 broches qui est serré à plus de 500 N.m. La dépose de cet écrou est nécessaire pour pouvoir effectuer l'entretien du disque de frein arrière, des mâchoires de frein à main et des demi-arbres. Le Laser 9187 a été conçu pour permettre à l'utilisateur de retirer la fixation sans l'endommager.

  • Les applications comprennent : MAXUS V90 et Delivery 9 (à partir de 2019).
  • Écrou de moyeu/écrou de blocage, douille à 2 broches.
  • Carré de 3/4". Diamètre extérieur : 88 mm.
  • En acier au carbone pour plus de robustesse. En raison du couple de serrage élevé requis, Laser Tools recommande l'utilisation d'un multiplicateur de couple tel que la référence Laser 7183 ou similaire.
  • REMARQUE : En raison de la nature de la fixation à 2 broches, cette douille ne doit pas être utilisée avec des outils à percussion.
List Price: £124.46 ex VAT £149.35 inc VAT
3/4" Drive
 Buy Locally

Useful Downloads

Press Release
Laser Tools introduces Rear Hub Nut Tool for MAXUS V90 & Deliver 9 vans

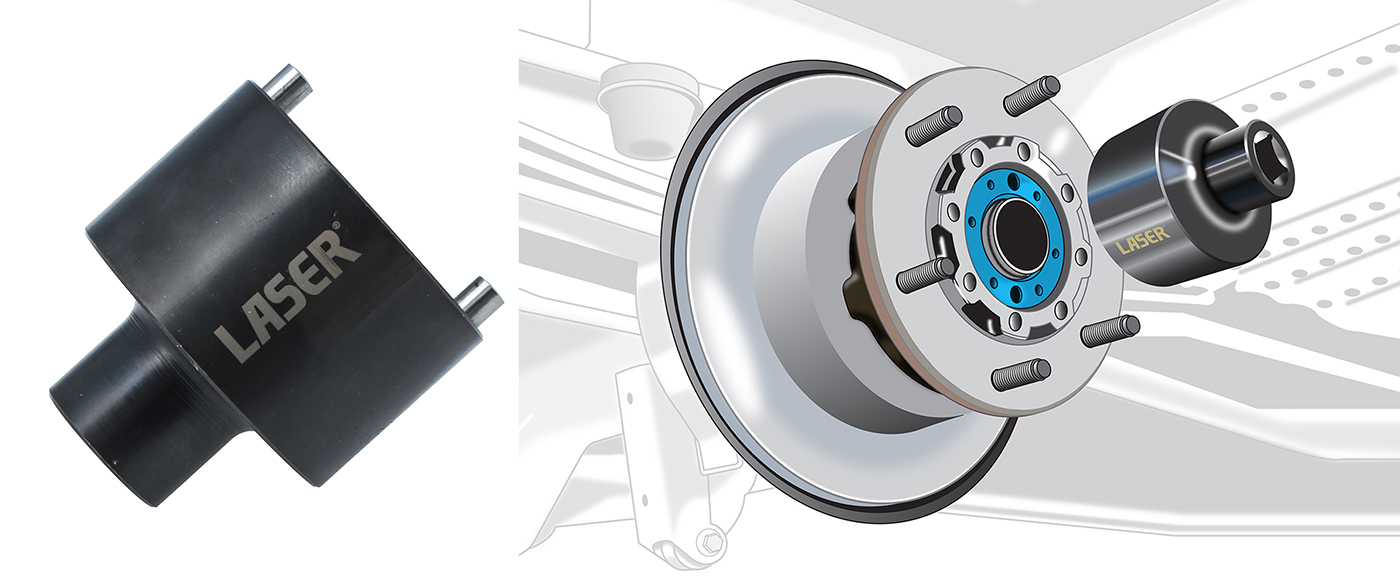

Servicing rear brakes, handbrake shoes, or half shafts on post 2019 MAXUS V90 and Deliver 9 vans just got safer and easier. The new Laser Tools’ Rear Hub Nut Tool (part number 9187), is engineered to engage the 2 pin, 88 mm Ø hub nuts—torqued to over 500 Nm—so technicians can remove and refit them without damaging the nut or axle components.

This extremely high torque figure means that improper removal methods (whacking them with a drift!), can deform the nut, damage the splines, or even compromise the half shaft seal. The Laser 9187’s precision machined 2 pin profile engages fully with the nut’s recesses, delivering a secure fit every time. Due to the 500 Nm+ tightening requirement, Laser Tools recommends pairing this socket with a torque multiplier (for example, part number 7318) or equivalent.

  • Vehicle compatibility: MAXUS V90 & Deliver 9 (2019 onwards).
  • Drive size: 3/4" drive for use with torque multiplier or breaker bar.
  • Socket profile: Two pin pattern to match factory Maxus hub nuts.
  • Dimensions: 88 mm outside diameter; carbon steel construction for maximum strength.
  • Usage Note: Due to the nature of the 2-pin fixing this socket is not suitable for impact tools.

With the 9187 Rear Hub Nut Tool, professional workshops and fleet operators can carry out rear axle servicing on MAXUS V90 and Deliver 9 models quickly, accurately, and without collateral damage—ensuring uptime and reliability for commercial clients. Available now for purchase from your Laser Tools stockist and online retailers.
